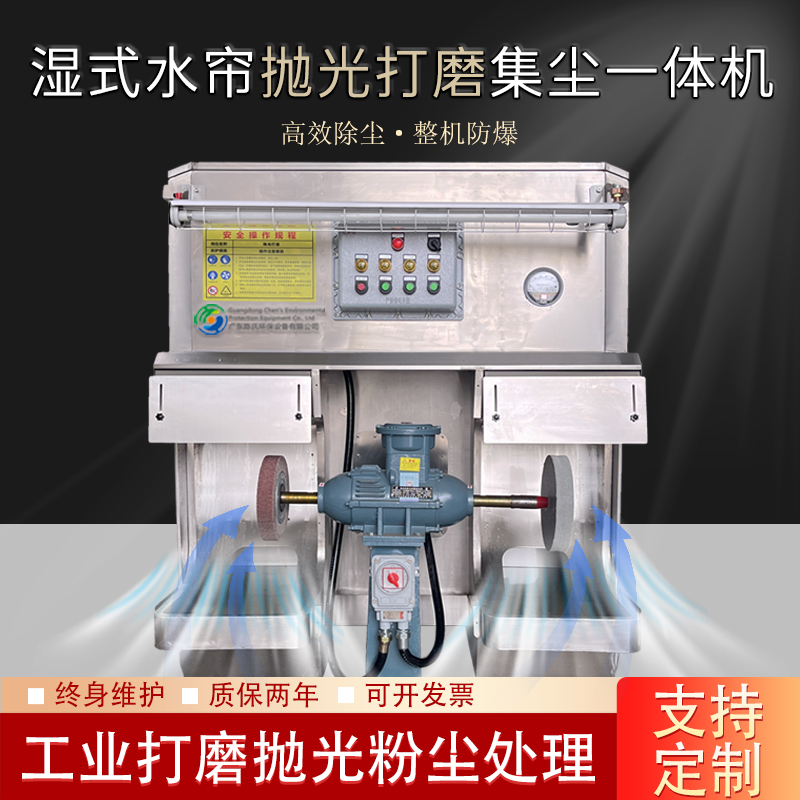

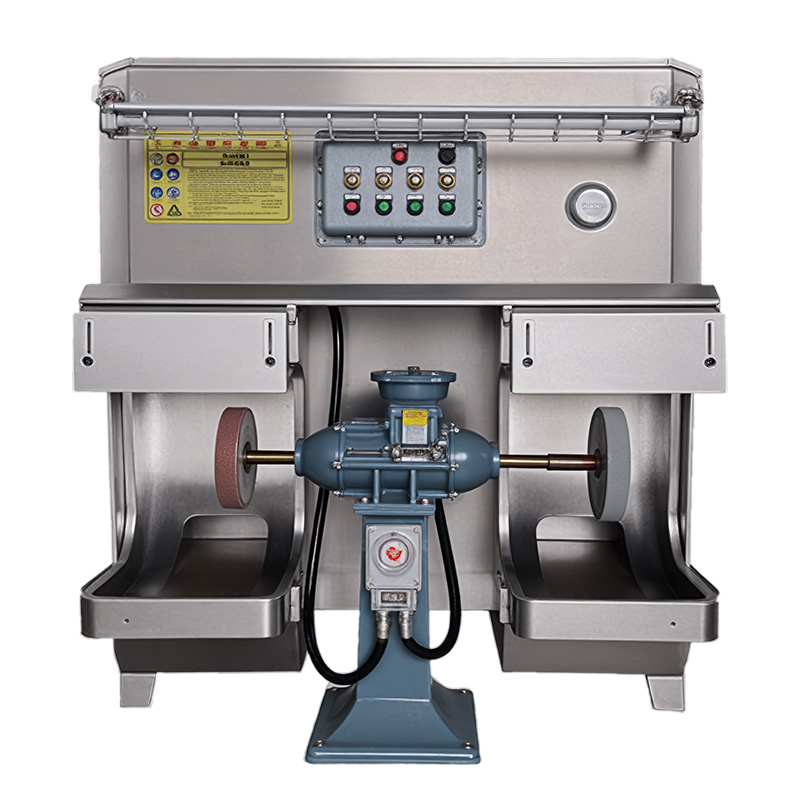

Wet curtain polishing, grinding and dust collection integrated machine

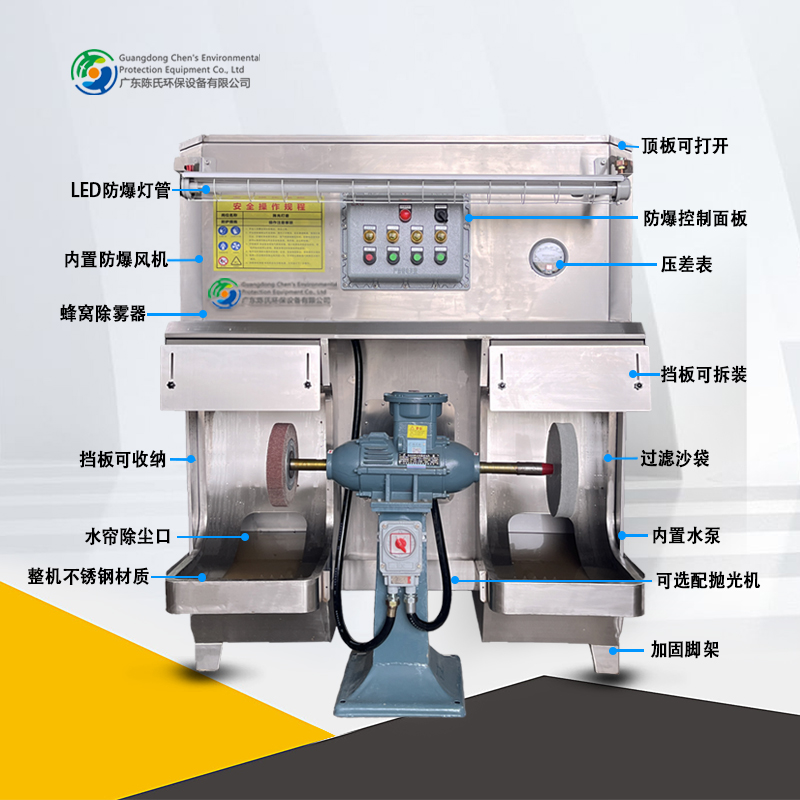

Wet curtain polishing, grinding and dust - collecting all - in - one machine. It adopts the arc structure based on the theory of fluid mechanics (such as water, wind, gas, etc.) and water circulation design. The polishing machine consists of four major parts: the outer box, the centrifugal fan, the water pump, and the electronic control interlocking control system. The box is made by welding steel plates, and the other parts are assembled with screws. The wet curtain type polishing and dust - removing all - in - one machine has an aesthetically designed whole machine, a compact structure, small size and light weight, and is characterized by convenient installation, maintenance, operation and use.

When the dust - containing gas enters the dust collector from the inlet, the airflow turns and impacts the water surface downward. Some larger dust particles fall into the water. When the dust - containing gas passes through the "S" - shaped channel between the upper and lower blades at a speed of 10 - 15 meters per second, a large number of water splashes are stirred up, making the water and gas fully contact. Most of the fine dust particles are mixed into the water. Due to the centrifugal force, the dust - containing gas forms a vortex chamber in the "S" - shaped channel, and the whole flow direction changes in the vortex chamber. Thus, the necessary relative motion between dust particles and droplets is generated, which becomes an effective dust - removing process. After leaving the vortex chamber, the dust - laden droplets and the purified gas pass through the mist - liquid separation chamber to remove water droplets and then are discharged from the dust - collecting unit through the ventilation opening. An explosion - proof lighting lamp with an illuminance > 800 is installed on the upper part of the wet curtain polishing, grinding and dust - collecting all - in - one machine to facilitate the operation of the staff. After the wet curtain polishing, grinding and dust - collecting all - in - one machine has been used for a certain period of time, a certain amount of sediment will be deposited inside. The staff must regularly open the maintenance door to clean the sediment, and the dust accumulation on the inner wall must be < 11mm. The wet curtain polishing, grinding and dust - collecting all - in - one machine ensures the safety and explosion - proof of the explosion - proof dust - removing environment, ensures the safety of the employees' production environment, improves the utilization efficiency of the grinding position, and also improves the production efficiency.
