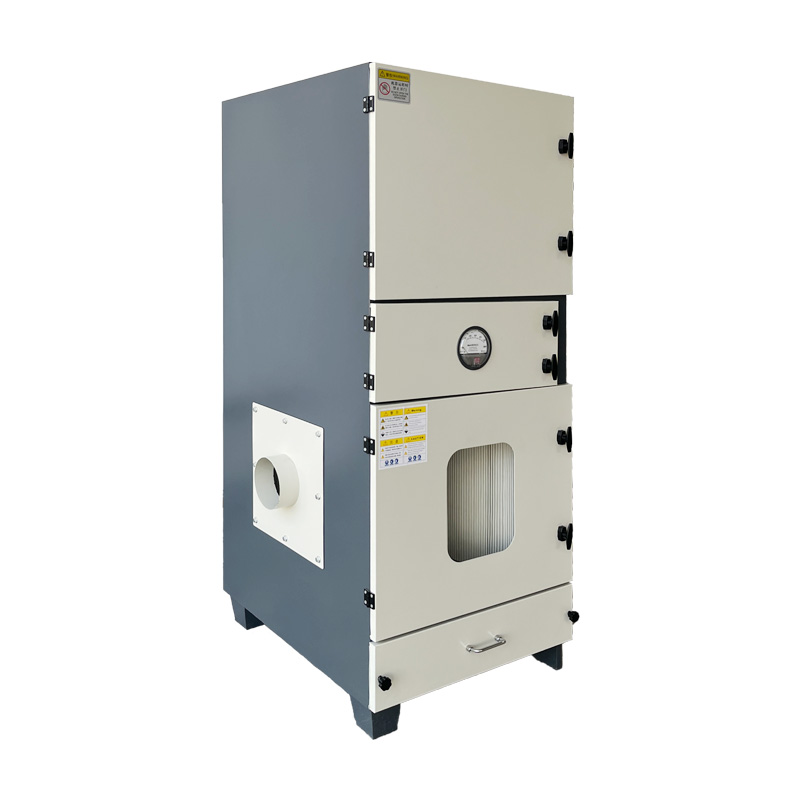

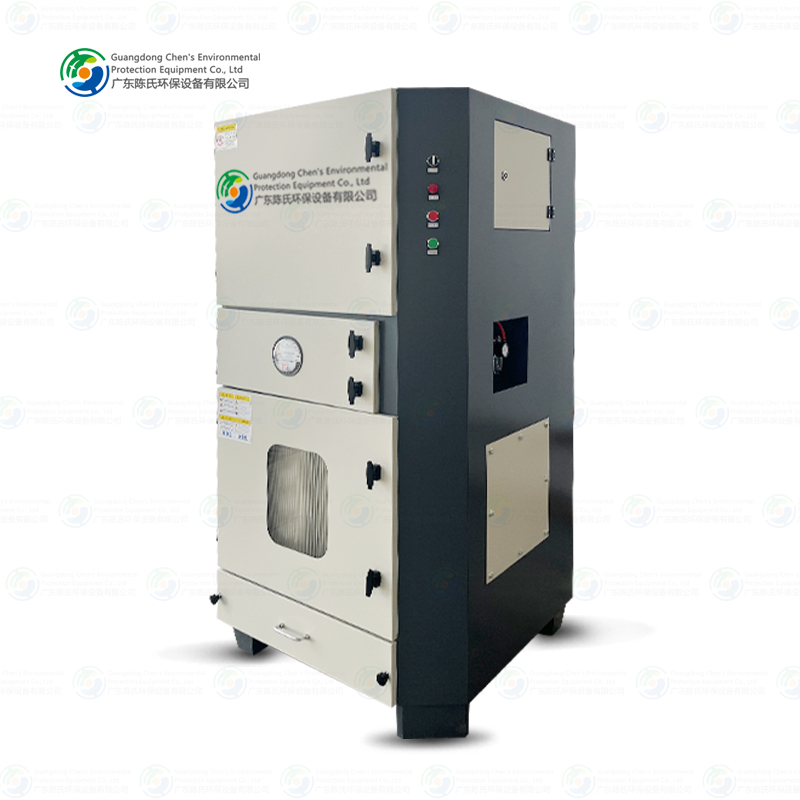

Vertical dust collector [New patented model]

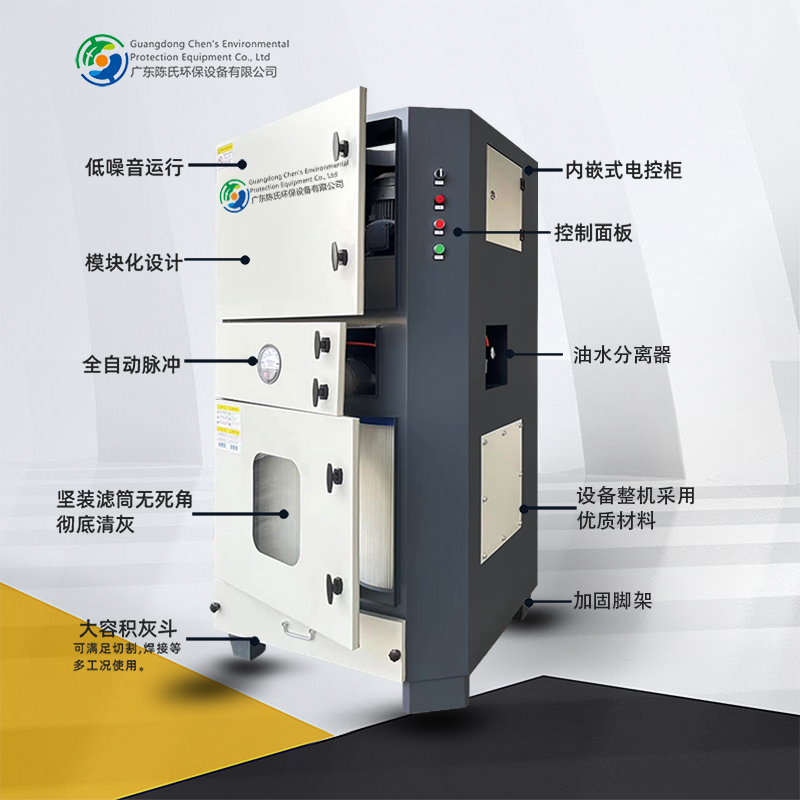

The structure of the vertical dust collector [new patented model] is composed of an air inlet pipe, an air outlet pipe, a box body, an ash hopper, a dust cleaning device, a flow guiding device, an air distribution plate, a high - efficiency filter element, and an electronic control device.

Working principle: After the dusty gas enters the dust collector under the guidance of the fan, due to the sudden expansion of the airflow end - face and the effect of the air distribution plate, some of the coarse - grained dust particles in the airflow settle into the ash hopper under the action of gravity and inertial force. The fine - grained and low - density dust particles enter the filtration chamber. Through comprehensive effects such as Brownian diffusion and fiber interception, the dust is deposited in the ash hopper of the vertical dust collector.
